OEM GYTA53 Outdoor Fiber Optic Cable , Double Steel Aluminium Armored Fiber Cable

Name: OEM GYTA53 Outdoor Fiber Optic Cable Double Steel Aluminium Armored Fiber Cable
Brand: Huayixin and OEM
Price: 1 USD

Best OEM GYTA53 Outdoor Fiber Optic Cable , Double Steel Aluminium Armored Fiber Cable wholesale

Brand Name : Huayixin and OEM

Model Number : GYTA53

Certification : CE/Rosh/ISO9001

Place of Origin : China

MOQ : 3KM

Price : Negotiable

Payment Terms : L/C, D/P, T/T, D/A, Western Union, MoneyGram

Supply Ability : 50000KM Per month

Delivery Time : 5-8 working days after payment

Packaging Details : Wooden Drum

Name : Fiber optic cable

Fiber : Single mode G652D

Fiber number : 4-288 core

Jacket : Double jacket

Fiber type : Single mode

Color : Black

Armored : Yes ,Double Armored

MOQ : 3KM

OEM : Accept

Operating temperature : -40~75

Contact Now

Factory Double Steel Aluminium Armored Underground Fiber Optic Cable 24 48 96 144 Cores Optical Fiber Cable GYTA53

In the GYTA53 cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound. Tubes and fillers are stranded around the strength member into a circular cable core. An Aluminum Polyethylene Laminate(APL) is applied around the core.

Cable structure

The optical fibres are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. The tubes and fillers are stranded around the central strength member to form a cable core.The cable core is armored with aluminum tape,then an inner PE sheath is extruded.The inner sheath is armored with corrugated steel tape,finally an outer PE sheath is extruded.

OEM GYTA53 Outdoor Fiber Optic Cable , Double Steel Aluminium Armored Fiber Cable

Fiber core number and fiber type:

The number of fiber cores can be selected from 2 to 288. There are the following optical fiber options:

1,Single mode optical fiber G.652.D(or G.652.B) ,G.655;

2,Multi mode optical fiber 50/125μm or 62.5/125μm,OM1 OM2 OM3 OM4 optional.

You can choose to use hybrid fiber according to the actual situation, such as the hybrid use of G.652.D

and G.655 fiber.

Parameters of single mode fiber :

Items		Description
Items		G.652.D	G.655
Attenuation (dB/km) (After cable)	1310nm	≤0.36	≤0.40
Attenuation (dB/km) (After cable)	1550nm	≤0.22	≤0.25
Cable cut-off wavelength (mm)		≤1260	≤1450
Zero-dispersion wavelength (mm)		1300～1324	≤1520
Zero-dispersion slope([ps/(nm2·km)])		≤0.092	---
Dispersion slope(1550nm) ([ps/(nm2·km)])		---	≤0.0084
1310nm Mode field diameter (μm)		8.7~9.5	---
1550nm Mode field diameter (μm)		9.8~10.8	9.1~10.1
Core/Clad concentricity error (μm)		≤0.6	≤0.6
Cladding diameter ( μm)		125±0.7	125±0.7
Cladding non-circularity (%)		≤1.0	≤1.0
Primary Coating diameter ( μm) (Before be colored)		235～250	235～250
Proof test level (kpsi)		≥100	≥100
Atttenuation with bending loss(dB)	@1550nm,25 mm radius, 100 turns	≤0.05	≤0.05
Atttenuation with bending loss(dB)	@1550nm,16 mm radius, 1 turn	≤0.05	≤0.05

Attenuation and bandwidth of multi mode Optical fiber:

Fiber type	850/1300nm Attenuation(20℃) (After cable)		Overﬁlled Modal Bandwidth	Effective Modal Bandwidth	Application support distance on (at 850nm)
Fiber type	Typical value	Max value	850/1300nm	850nm	40GBASE-SR4 / 100GBASE-SR101	10GBASE-SR	1000BASE-SR
unit	dB/Km	dB/Km	MHz．Km	MHz．Km	m	m	m
50/125	3.0/1.0	3.3/1.2	≥500/500	---	---	---	---
62.5/125	3.0/1.0	3.3/1.2	≥200/500	---	---	---	---
OM2+	3.0/1.0	3.3/1.2	≥700/500	≥950	---	140	170
OM3	3.0/1.0	3.3/1.2	≥1500/500	≥2000	150	300	550
OM4	3.0/1.0	3.3/1.2	≥3500/500	≥4700	750	1000	1100

Fibre and Tube Colour Code :

OEM GYTA53 Outdoor Fiber Optic Cable , Double Steel Aluminium Armored Fiber Cable

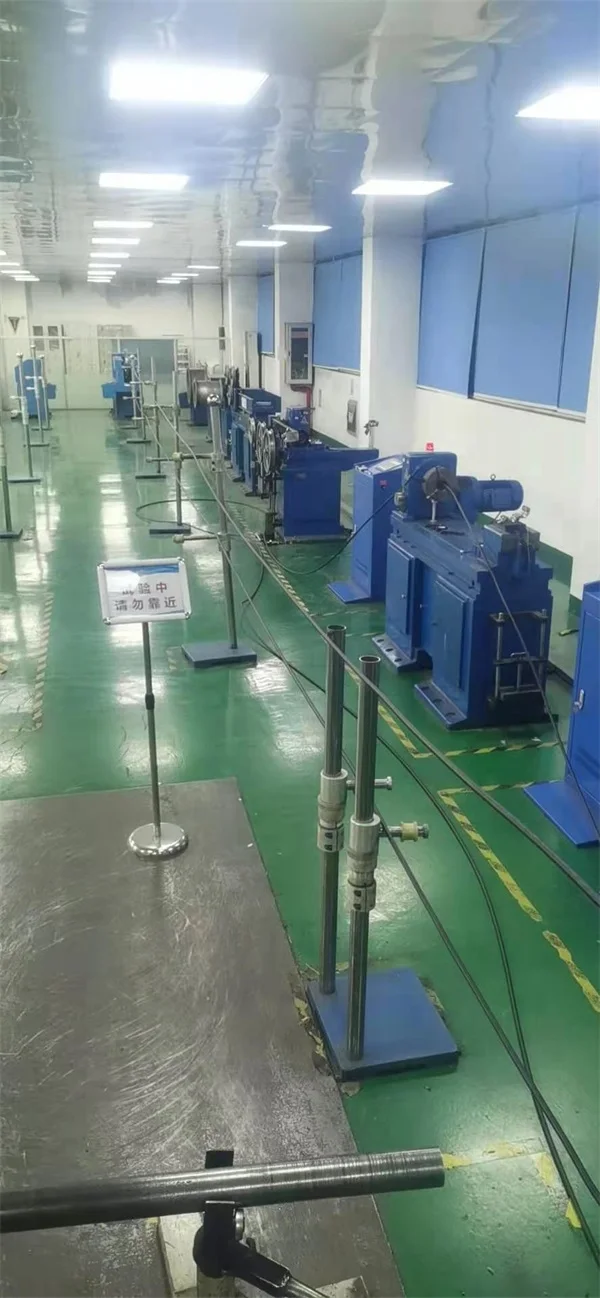

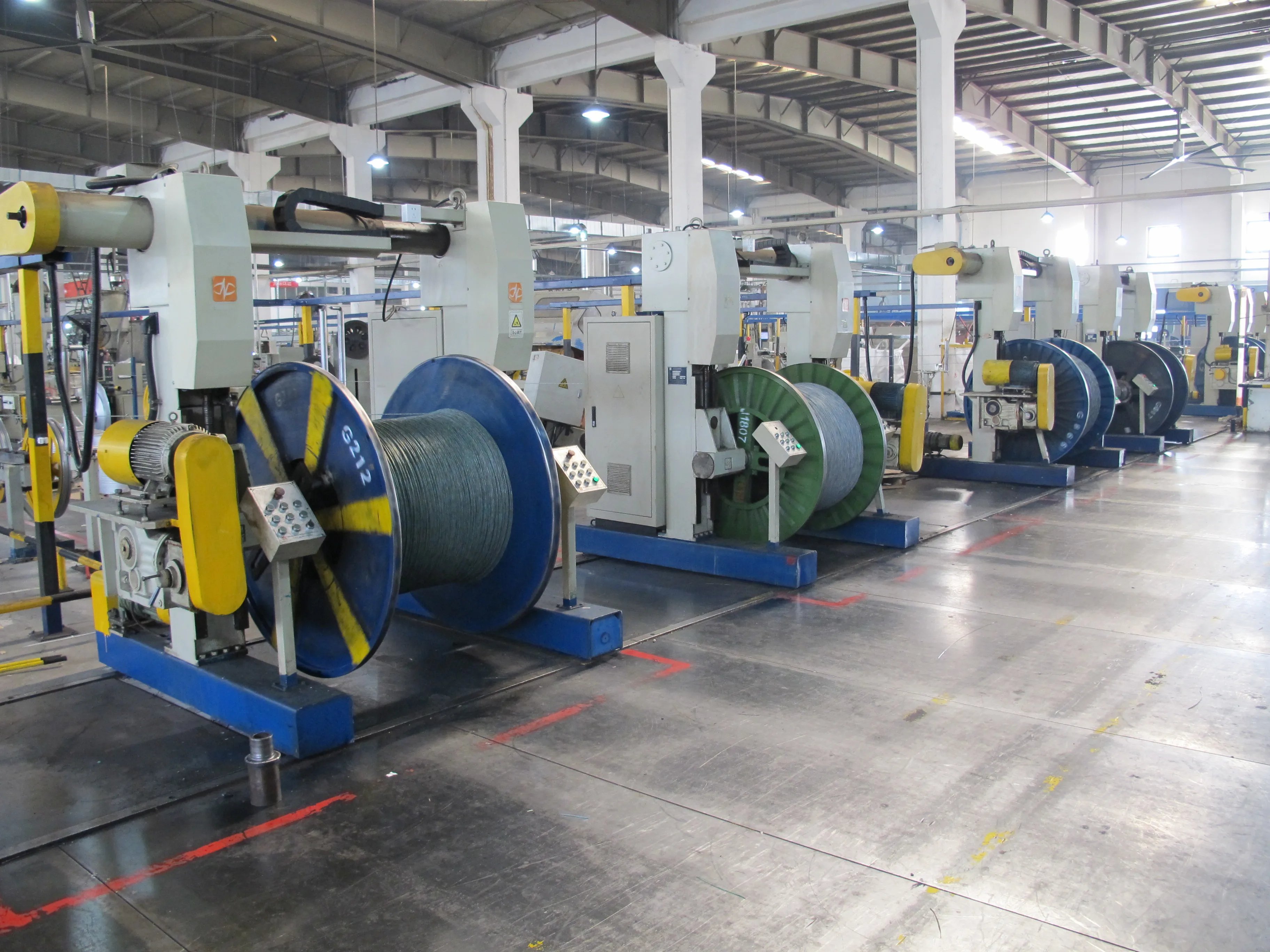

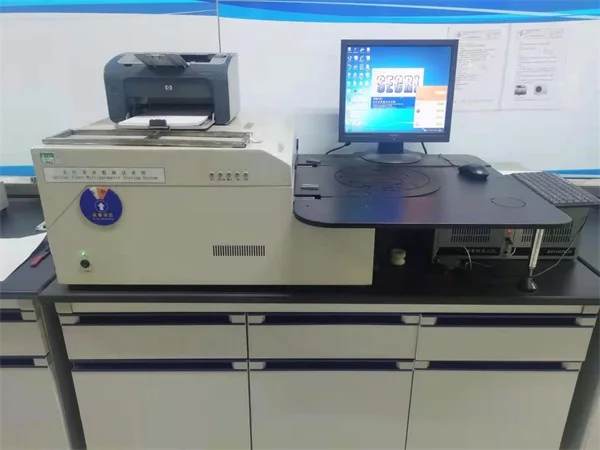

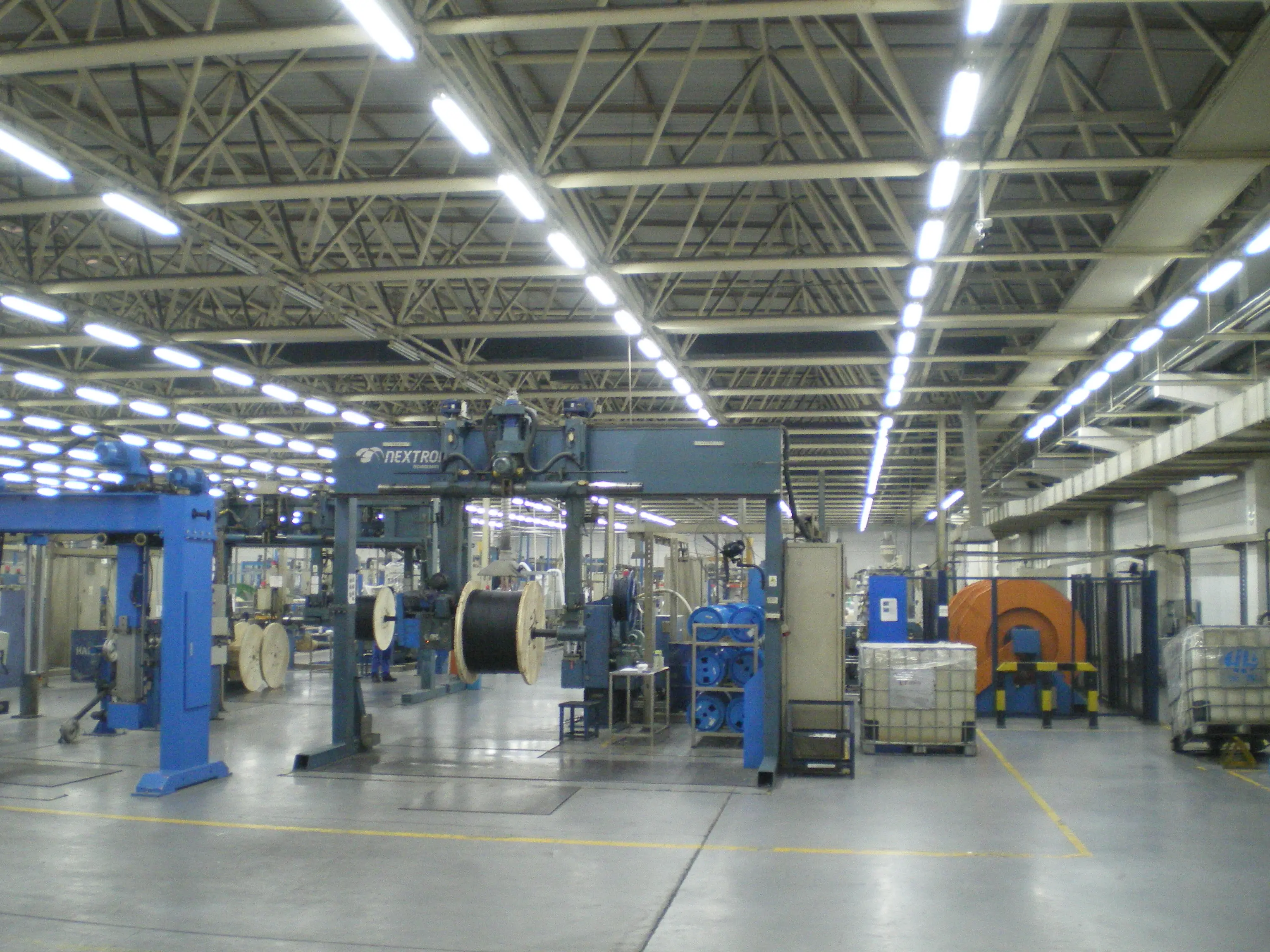

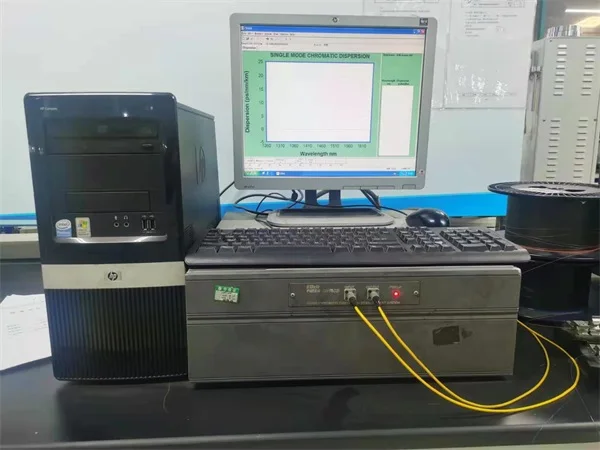

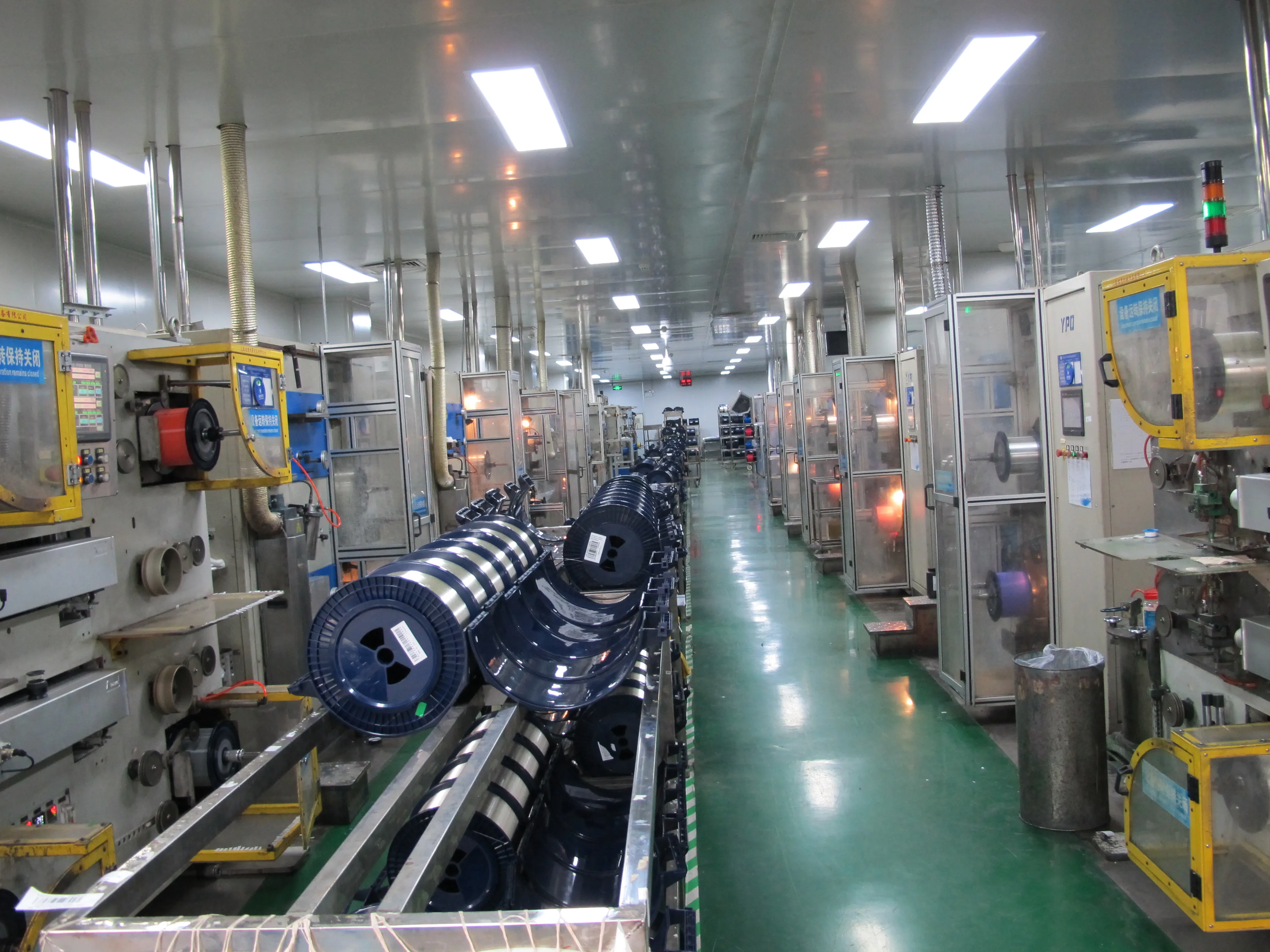

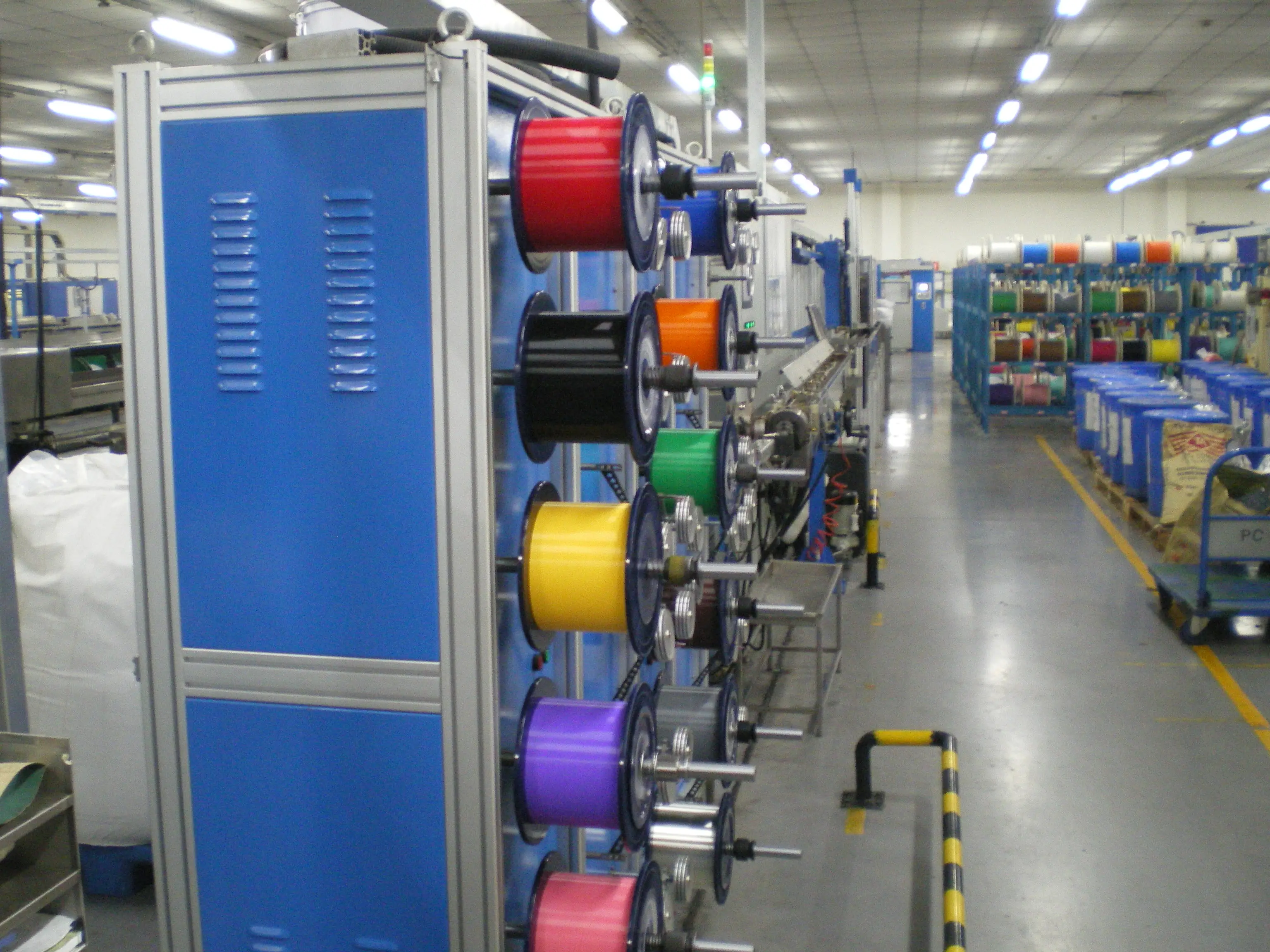

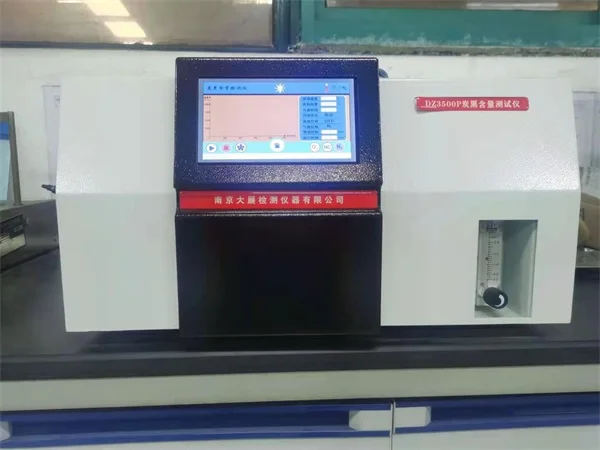

WORKSHOP ANG EQUIPMENT

CERTIFICATIONS
